Maddog's HTML Primer for Real People

Chapter 11, Lesson 4

Ch 11, L 4 - Links, Images, & Tables: Links in a Circle

In this lesson, we'll we'll present a creative use of borderless tables, to produce the effect of 8 links arranged in a circle, using only one very small image.

North

NorthWest Austin,
Texas
Metro
Area NorthEast

West East

SouthWest SouthEast

South

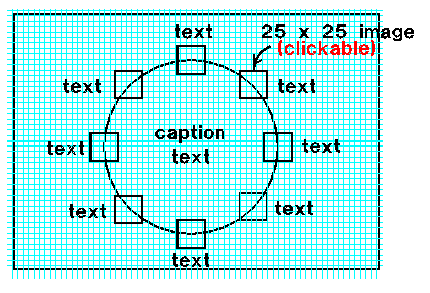

The first preliminary design sketch shows the general idea of our table, and places the images on a circle we drew on our graph paper. Each square on the light-blue grid represents 5 pixels of height/width. This helps us to visualize what we have to do to create the table.

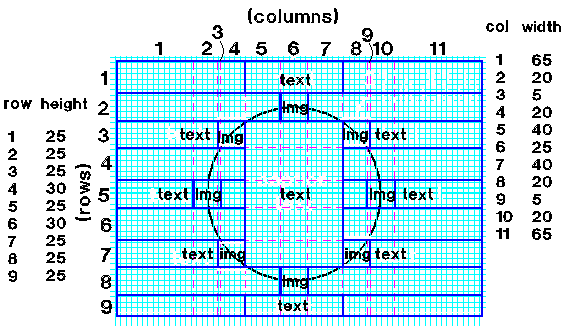

We can now draw our cells and columns, which yields the second sketch ( a refinement of the first). We've counted the squares and thereby sized our rows and columns (shown in the sketch's data tables). Cells are outlined in heavy blue, and columns and rows in pink. There are several blank cells (using ' '), and some cells span more than one column or row, in which case their height/width is adjusted accordingly.

We'll add one extra row (at the top), which has one cell per column; that is, no column spanning. Some browsers can get confused if each column is not explicitly defined at least once. We make the 11 cells empty (i.e., nothing between the opening and closing tag), but we explicitly specify their height and width, Since we don't care about the height of the top row (which, for all practical purposes, will be "invisible"), we specify the height as1 pixel.

Here's the HTML source code for our demo:

<TABLE WIDTH=335 BORDER=0 CELLSPACING=0 CELLPADDING=0>
<TR>
    <TD WIDTH=65 HEIGHT=1></TD>
    <TD WIDTH=20 HEIGHT=1></TD>
    <TD WIDTH=5 HEIGHT=1></TD>
    <TD WIDTH=20 HEIGHT=1></TD>
    <TD WIDTH=40 HEIGHT=1></TD>
    <TD WIDTH=25 HEIGHT=1></TD>
    <TD WIDTH=40 HEIGHT=1></TD>
    <TD WIDTH=20 HEIGHT=1></TD>
    <TD WIDTH=5 HEIGHT=1></TD>
    <TD WIDTH=20 HEIGHT=1></TD>
    <TD WIDTH=65 HEIGHT=1></TD></TR>
<TR>
    <TD WIDTH=115 HEIGHT=25 COLSPAN=4></TD>
    <TD WIDTH=105 HEIGHT=25 COLSPAN=3 ALIGN="CENTER"
        VALIGN="MIDDLE"><FONT SIZE=-1 COLOR="MAROON">North</FONT></TD>
   <TD WIDTH=115 HEIGHT=25 COLSPAN=4></TD></TR>
<TR>
   <TD WIDTH=155 HEIGHT=25 COLSPAN=5></TD>
   <TD WIDTH=25 HEIGHT=25 ALIGN="CENTER"><A HREF="aus_n.htm"><IMG
       SRC="dot_sun.gif" BORDER=0></A></TD>
   <TD WIDTH=155 HEIGHT=25 COLSPAN=5></TD></TR>
<TR>
    <TD WIDTH=90 HEIGHT=25 COLSPAN=2 ALIGN="RIGHT" VALIGN="MIDDLE"><FONT
        SIZE=-1 COLOR="MAROON">NorthWest </FONT></TD>
    <TD WIDTH=25 HEIGHT=25 COLSPAN=2><A HREF="aus_nw.htm"><IMG
        SRC="dot_sun.gif" BORDER=0></A></TD>
    <TD WIDTH=105 HEIGHT=25 COLSPAN=3 ROWSPAN=5 ALIGN="CENTER"
        VALIGN="MIDDLE"><FONT SIZE=+1
        COLOR="MAROON">Austin,<BR>Texas<BR>Metro<BR>Area</FONT></TD>
    <TD WIDTH=25 HEIGHT=25 COLSPAN=2><A HREF="aus_ne.htm"><IMG
        SRC="dot_sun.gif" BORDER=0></A></TD>
    <TD WIDTH=90 HEIGHT=25 COLSPAN=2 ALIGN="LEFT" VALIGN="MIDDLE"><FONT SIZE=-1 COLOR="MAROON"> NorthEast</FONT></TD></TR>
<TR>
    <TD WIDTH=115 HEIGHT=30 COLSPAN=4></TD>
    <TD WIDTH=115 HEIGHT=30 COLSPAN=4></TD></TR>
<TR>
    <TD WIDTH=65 HEIGHT=25 ALIGN="RIGHT" VALIGN="MIDDLE"><FONT SIZE=-1
        COLOR="MAROON">West </FONT></TD>
    <TD WIDTH=25 HEIGHT=25 COLSPAN=2><A HREF="aus_w.htm"><IMG
        SRC="dot_sun.gif" BORDER=0></A></TD>
    <TD WIDTH=20 HEIGHT=25 ></TD>
    <TD WIDTH=20 HEIGHT=25 ></TD>
    <TD WIDTH=25 HEIGHT=25 COLSPAN=2><A HREF="aus_e.htm"><IMG         SRC="dot_sun.gif" BORDER=0></TD>
    <TD WIDTH=65 HEIGHT=25 ALIGN="LEFT" VALIGN="MIDDLE"><FONT SIZE=-1
        COLOR="MAROON"> East</FONT></TD></TR>
<TR>
    <TD WIDTH=115 HEIGHT=30 COLSPAN=4></TD>
    <TD WIDTH=115 HEIGHT=30 COLSPAN=4></TD></TR>
<TR>
    <TD WIDTH=90 HEIGHT=25 COLSPAN=2 ALIGN="RIGHT" VALIGN="MIDDLE"><FONT
        SIZE=-1 COLOR="MAROON">SouthWest </FONT></TD>
    <TD WIDTH=25 HEIGHT=25 COLSPAN=2><A HREF="aus_sw.htm"><IMG
        SRC="dot_sun.gif" BORDER=0></TD>
    <TD WIDTH=25 HEIGHT=25 COLSPAN=2><A HREF="aus_se.htm"><IMG
        SRC="dot_sun.gif" BORDER=0></TD>
    <TD WIDTH=90 HEIGHT=25 COLSPAN=2 ALIGN="LEFT" VALIGN="MIDDLE"><FONT
        SIZE=-1 COLOR="MAROON"> SouthEast</FONT></TD></TR>
<TR>
   <TD WIDTH=155 HEIGHT=25 COLSPAN=5></TD>
   <TD WIDTH=25 HEIGHT=25><A HREF="aus_s.htm"><IMG SRC="dot_sun.gif"
        BORDER=0></A></TD>
   <TD WIDTH=155 HEIGHT=25 COLSPAN=5></TD></TR>
<TR>
    <TD WIDTH=115 HEIGHT=25 COLSPAN=4></TD>
    <TD WIDTH=105 HEIGHT=25 COLSPAN=3 ALIGN="CENTER"
        VALIGN="MIDDLE"><FONT SIZE=-1 COLOR="MAROON">South</FONT></TD>
    <TD WIDTH=115 HEIGHT=25 COLSPAN=4></TD></TR>
</TABLE>
