Here's another of my favorite antennas for QRP portable operation. The single-wire-fed Windom is one the "oldies but goodies", dating from the 1920's or earlier. It provides easy setup in the field, is extremely compact, and provides excellent performance on all bands 80 thru 15 Meters. It's a somewhat-resonant antenna; that is, for 40, 30, 20, and 15 Meters, some segment is approximately resonant at any given time. Using a field-radial system as shown, the feedpoint impedances tune readily on all bands 40-15M on my Elecraft K1's built-in automatic antenna tuner, and I've used it with great success with my Norcal BLT Z-match. Gain on all bands is very respectable, except on 30 Meters, where it is nevertheless quite usable. On 80 Meters, it performs like a top-loaded vertical, with relatively low angles of radiation. You may want to use a 1:4 impedance transfiormer (toroidal balun) to improve your chances of matching on 30 Meters, when using the BLT tuner.
Here are the EZNEC-calculated feedpoint impedances for each CW QRP Calling Frequency:
80 Meters (3055 KHz) : Z= 24 - j89 ohms
40 Meters (7040 KHz) : Z= 684 - j283 ohms
30 Meters (10110 KHz) : Z= 803 + j1912 ohms
20 Meters (14060 KHz) : Z= 236 - j88 ohms
15 Meters (21060 KHz) : Z= 206 + j513 ohms

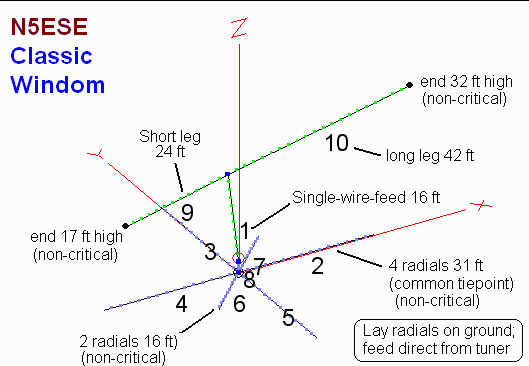

I built mine out of AWG 22 teflon-coated wire. For a counterpoise, I use four 31 ft radials, formed like an "X", with two additional 16 ft radials to cover 20 Meters. The radials are AWG 24 wire, also teflon insulated, and connect to a common tie-point, with a 30 inch tail for connecting to the antenna tuner or rig. I prefer the teflon-insulated wire for field antennas, as it tends to be less susceptable to changes due to moisture. While one could use a single counterpoise wire, I believe the extra wire radials help to establish a more consistent and stable "ground" system in the field, and thus more predictable performance from the antenna. Both the antenna and the radial system fit into a sandwich-sized ziplock bag.
This antenna is very flexible in its deployment. You'll get similiar performance whether it's deployed as a flattop or a "Sloper", though it will be best if the ends are at least 12 ft high. This antenna is actually intended to be low, withn the far end not more than 30 ft high..
Here are EZNEC patterns and gains for the illustrated configuration:

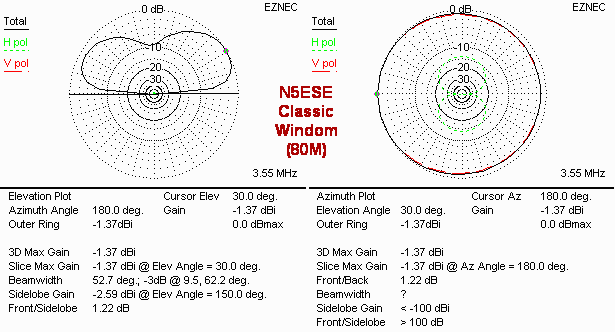

80 Meter Pattern

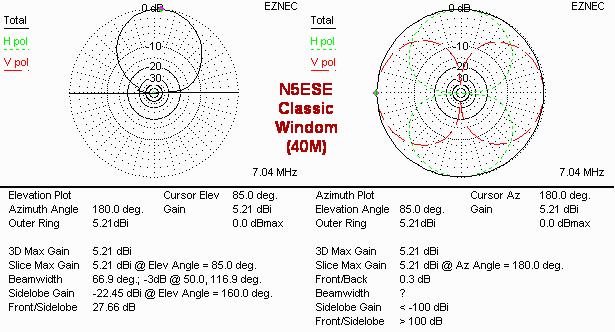

40 Meter Pattern

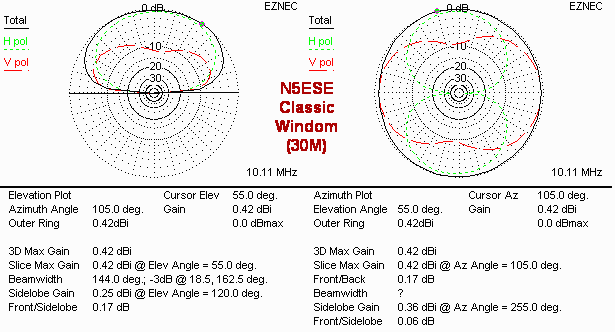

30 Meter Pattern

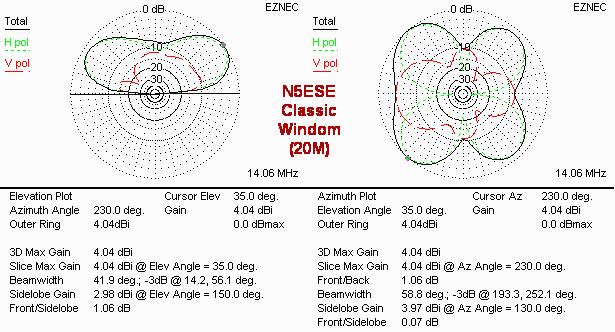

20 Meter Pattern
15 Meter Pattern
For those who want to model this themselves, the text-readable .EZ file can be viewed -here-
