N5ESE's Current Projects

This web page is always under construction

Here's op Monty tinkering recently with subminiature tubes.

Monty's current or planned projects:

Note: Truth be told, this is a really partial list. If I listed all the
projects I *start* but don't finish, I'd be ashamed and embarrassed.

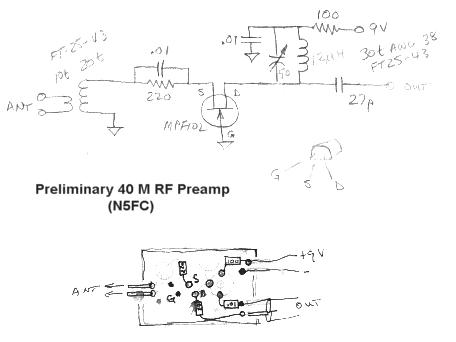

• RF Preamp for the N5ESE Shielded-Loop Antenna... here's a sketch

• All 2N2222 40 Meter CW/DSB Transceiver

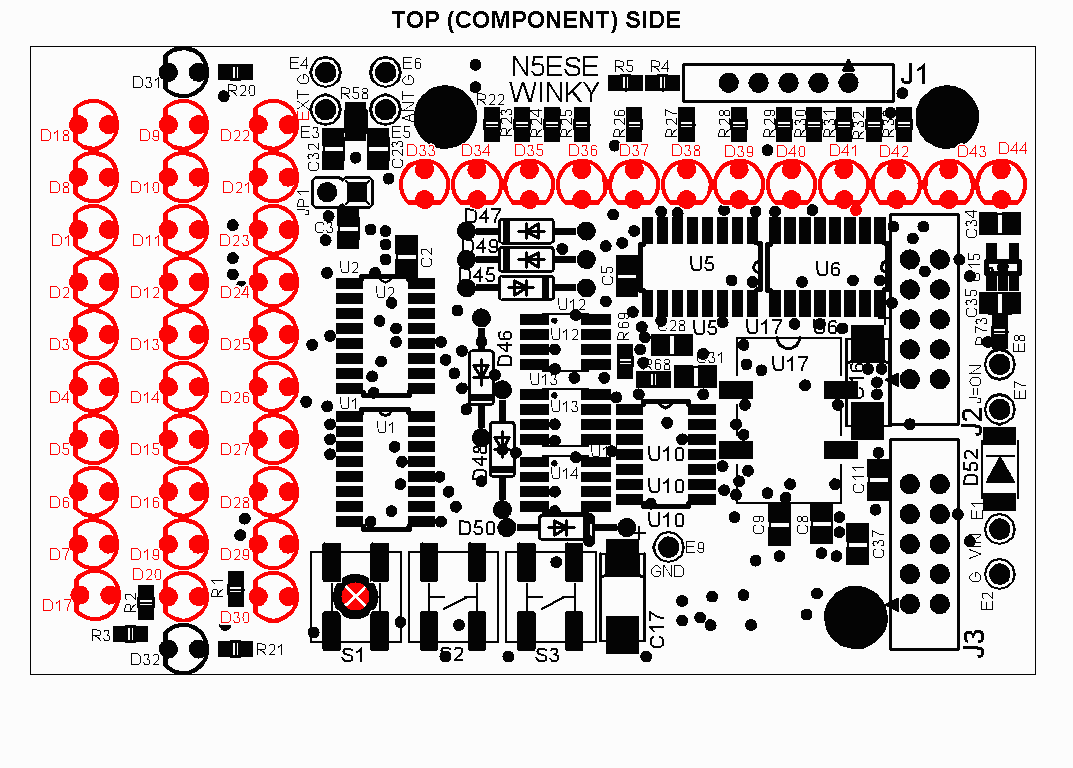

• HC908 uP plus DDS SWR Meter using LED indicators "Winky" or "Blinky" Board assembled, awaiting testing (since 2018)

• New antenna for Field Day (thinking about 3 shortened verticals in an array)

• High Efficiency QRP Loop Antenna... to fit in a suitcase.

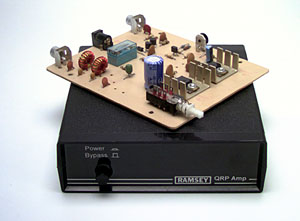

• Ramsey Electronics QAMP40 40 Meter 15 W Linear Amplifier Kit (on bench, yet to be assembled)

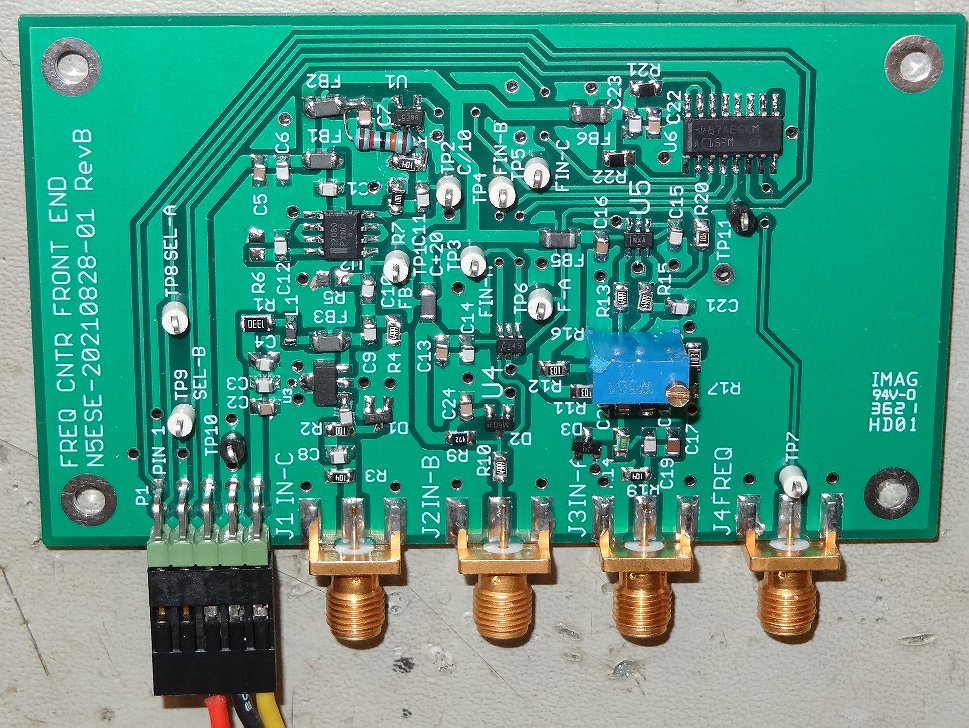

• Arduino-controlled High-Performance Frequency Meter Front End Board - partially assembled (got distracted...)

• Arduino-controlled Bench-Top Power & SWR Analyzer Breadboarding - SW "done" - partially assembled.

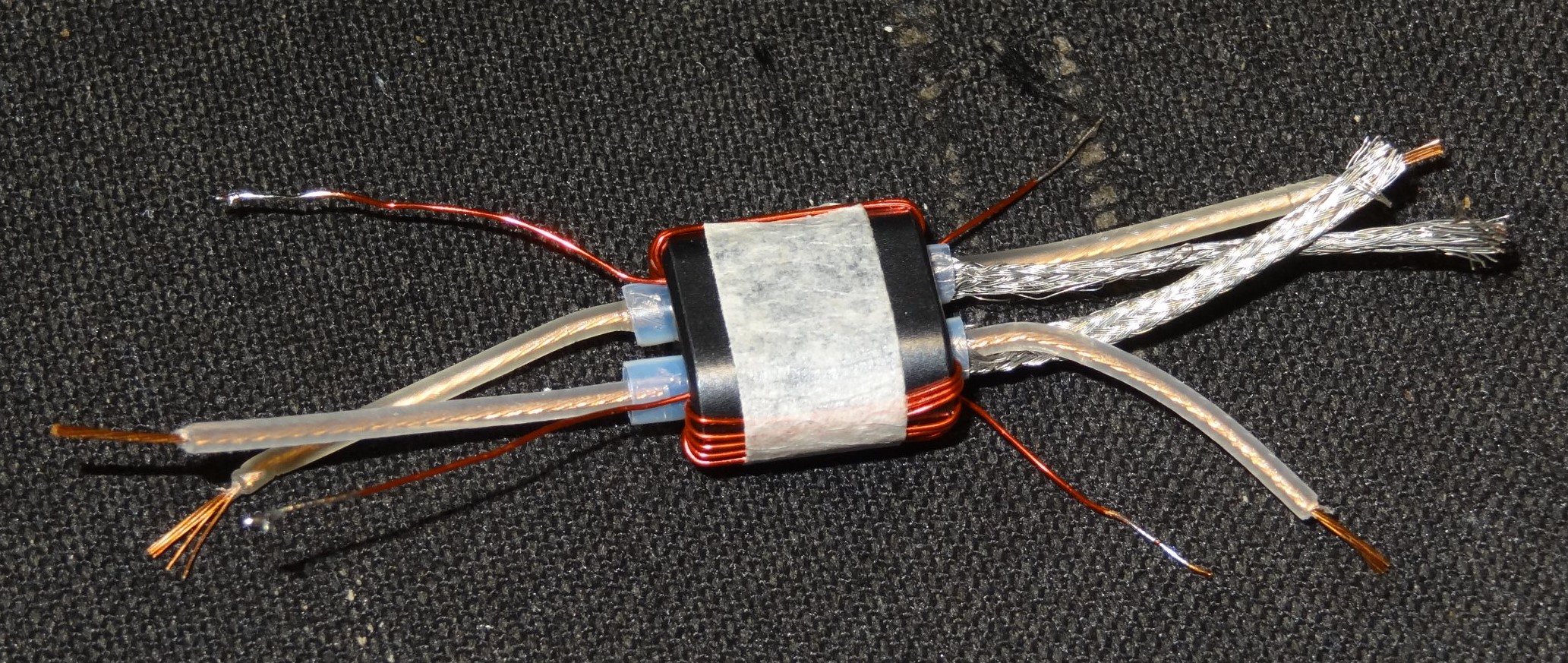

• Arduino-controlled QRP/Portable SWR Analyzer Breadboarding - SW "done", bridge "done" - partially assembled (sheesh...).

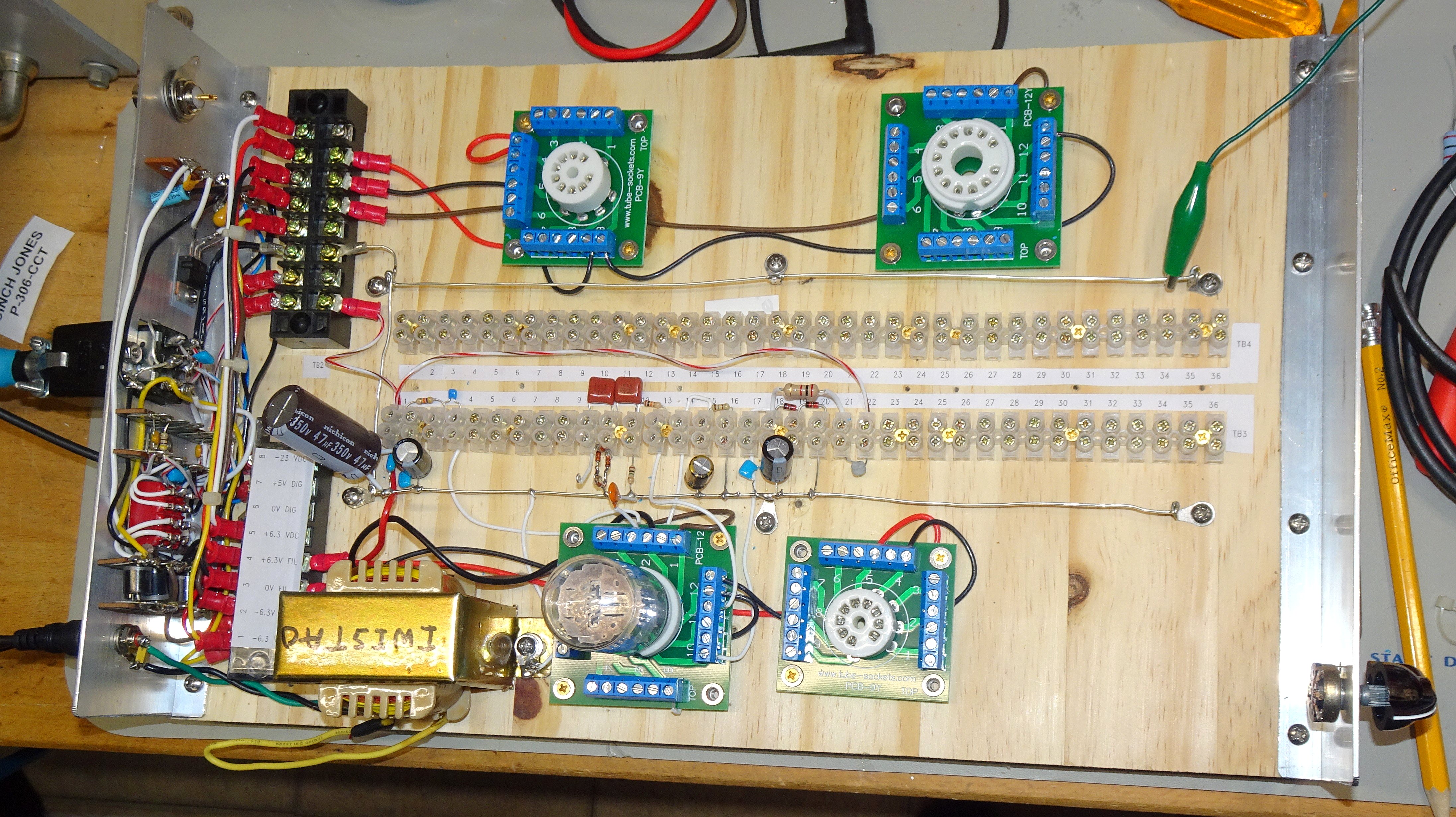

• 4X4 Compact 4-Tube 80/40/30/20M Receiver Breadboarding - parts gathered, breadboarding in progress (but stalled).

• 4X 12AQ5 Compact 80/40/30/20M Transmitter featuring No Power Transformer - parts gathered, awaiting breadboarding.


73,
Monty N5ESE
